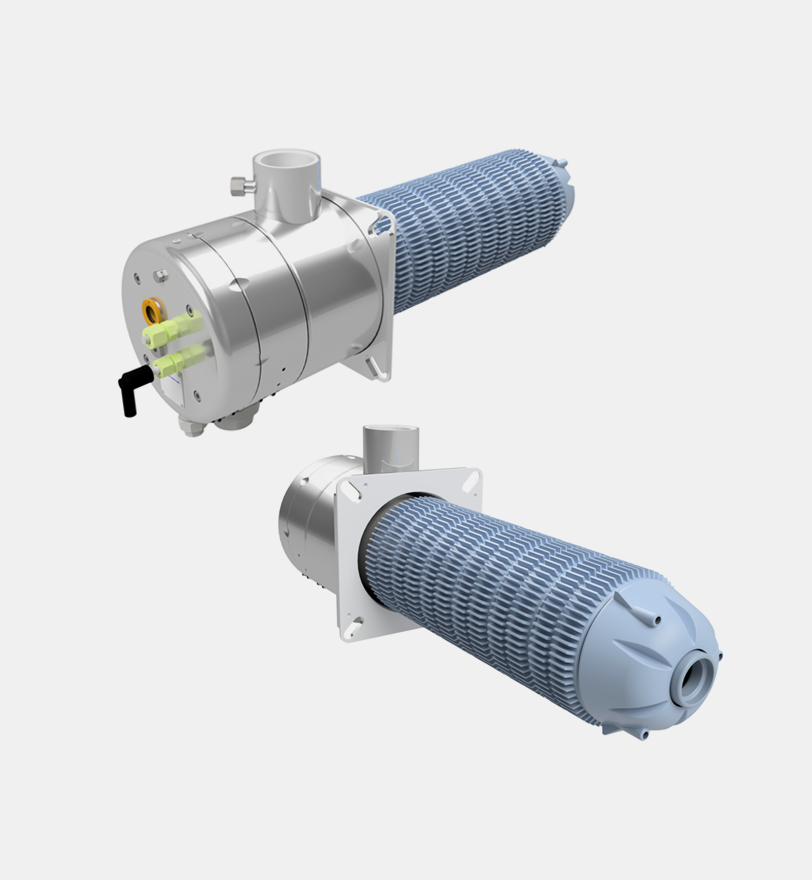

RECUFIRE®
Recuperator burner with metallic or ceramic recuperator
Gas burner with integrated heat-resistant recuperator. The large surface area of the heat exchanger ensures high heat recovery. Used as a radiant tube burner in radiant tubes, P-tubes, and double P-tubes, as well as in conjunction with an flue gas recirculation system in open- fired heat treatment systems.
RECUFIRE®
Description
RECUFIRE®
Applications - indirect heating
Data sheets for downloads
RECUFIRE® C30
RECUFIRE® C40
RECUFIRE® C70
RECUFIRE® C120
RECUFIRE® C200
RECUFIRE® C300
RECUFIRE® C400
- High-velocity burner with integrated heat exchanger for preheating combustion air from the combustion exhaust gases
- High energy saving up to 50 % (depending on the application)
- Power range 15 – 300 kW
- Metallic and fully ceramic version available
- For direct and indirect heating of industrial furnaces
- Single-ended radiant tubes with 100 – 300 mm diameter available
- Direct electric ignition
- Flame detection with ionisation rod (single-electrode operation) or UV-probe
- High flame velocity
- NOx-reduced combustion
- Suitable for natural gas, coke oven gas, coke-oven-blast furnace-mixed gas
- Inert gas roller hearth furnaces
- Inert gas chamber furnaces
- Continuous strip lines
- Use in single-ended radiant tubes, P- and double-P radiant tubes
- Chamber furnaces for heat treatment
- Bogie hearth furnaces for heating and forging
- Roller hearth furnaces with open flame
- Rotary hearth furnaces
